Agent workflow

An agent’s Workflow page is where you run tools outside the conversation: before the agent speaks, so it starts already knowing who it’s talking to, and after the session ends, so your systems are updated without anyone touching them. Voice agents call these pre-call and post-call functions; chat agents get the same two slots, named pre-chat and post-chat functions. Each slot is a dependency graph rather than a flat list. Functions with no dependency all start at once, and a function that depends on another waits for its output. Everything below works the same on both channels except where noted.

​

When to use it

Reach for a pre-call or pre-chat function when the agent needs a fact it can’t ask for, or shouldn’t have to:

• Greet an identified person by name. Look the caller’s number, or the chat’s contact details, up in your CRM before the first word, instead of asking “can I take your name?”
• Load account state. Pull their open tickets, last order, or policy status so the agent answers the first question without a lookup mid-conversation.
• Decide how to open. Fetch a flag (overdue balance, VIP tier, do-not-call) and branch the greeting on it.

Reach for a post-call or post-chat function when the work happens after the conversation, not in it:

• Log the outcome. Write the summary and disposition back to the CRM timeline.
• Create the follow-up. Open a task, a ticket, or a callback when the conversation agreed to one.
• Notify. Text the caller a confirmation, or push the result to your own endpoint.

Keep a tool in the conversation itself when the agent needs the result while it’s talking, like checking calendar availability for a time the caller just named. See integration tools for prompt agents and integration tools in conversation flow for that surface.

​

What you can run

Both slots take the same four kinds of function, from the same + menu: Saving an SMS function in the pre-call slot, or on a chat agent, is rejected: the session is over before an SMS can make sense, and a chat agent has no number to send from.

​

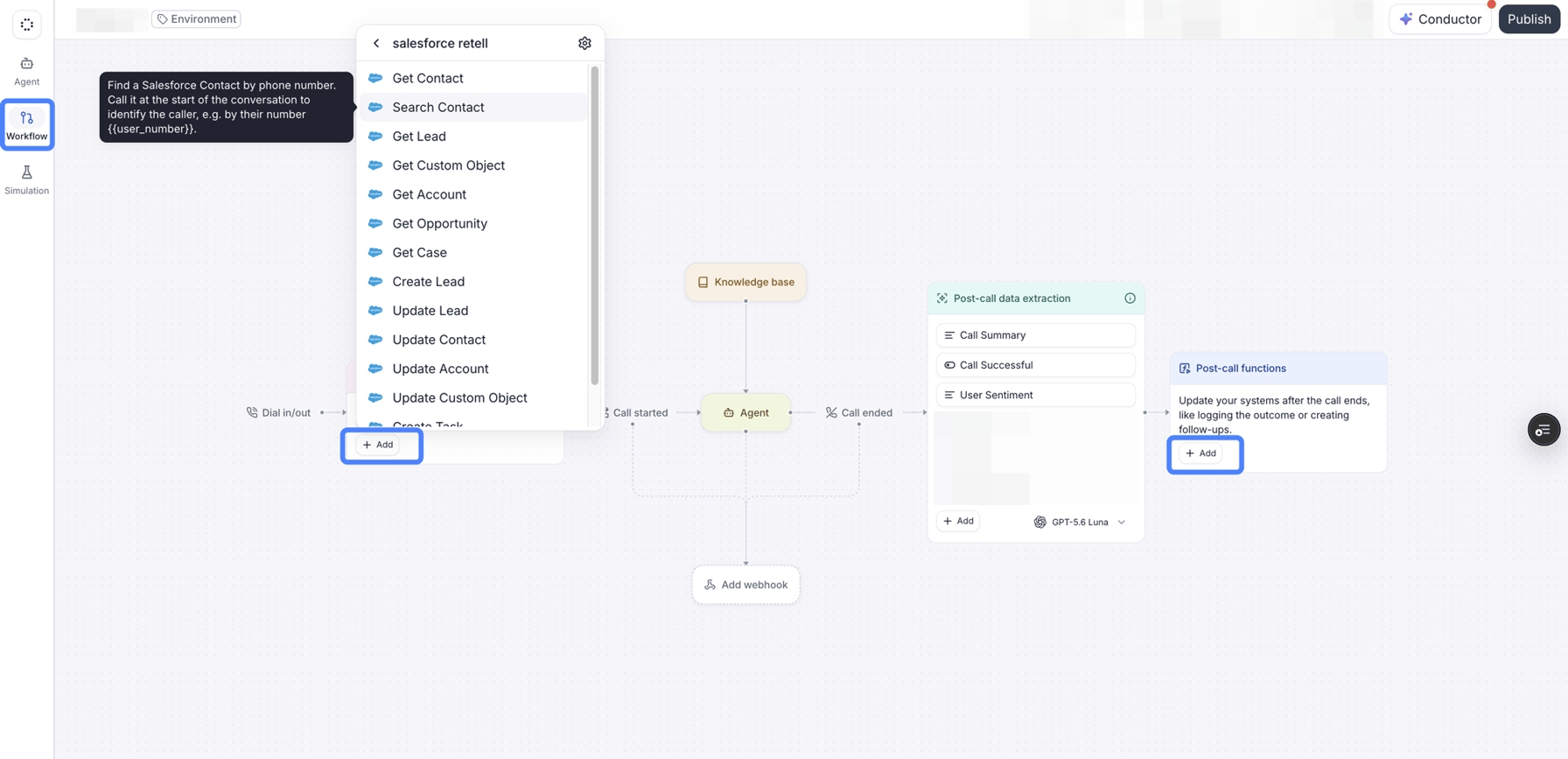

Add functions on the Workflow page

​

Run functions in parallel or in sequence

Retell runs the graph in batches: every function whose dependencies have finished runs concurrently, then the next batch, until the graph is done. Total time is the longest chain, not the sum of every function.

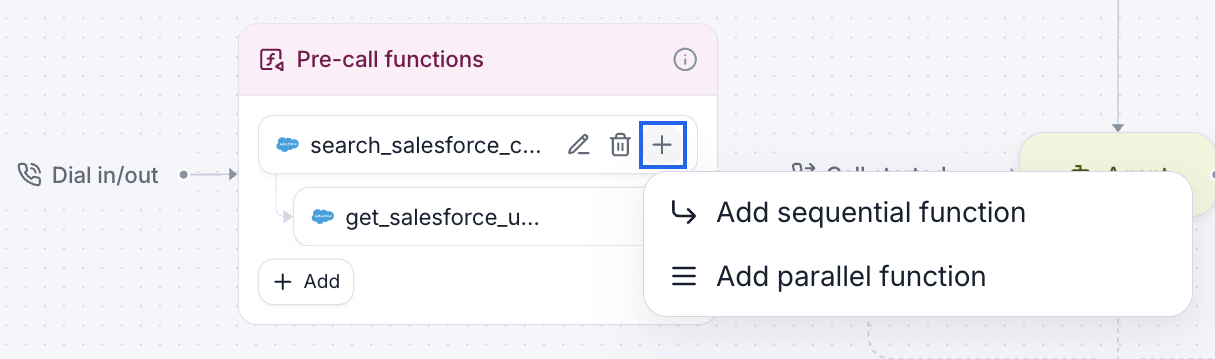

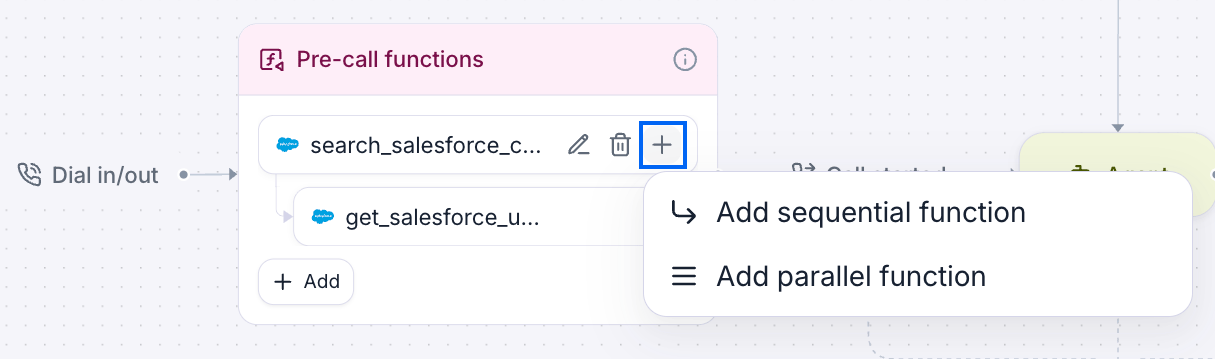

• Parallel. A function with no dependency starts as soon as the phase begins, so two independent lookups cost as long as the slower one. Add parallel function starts the new function at the same point as the row you clicked, and anything that was waiting on that row now waits for both.
• Sequential. Add sequential function makes the new function depend on every function in the row’s card, so it starts only once they’ve all succeeded. That’s what lets it use their output.

A chain can be at most 4 functions deep, and each slot holds at most 15 functions (as of August 2026). Saving is rejected if a function depends on itself, on a name that doesn’t exist, or on a cycle.

​

Pass a response from one function to the next

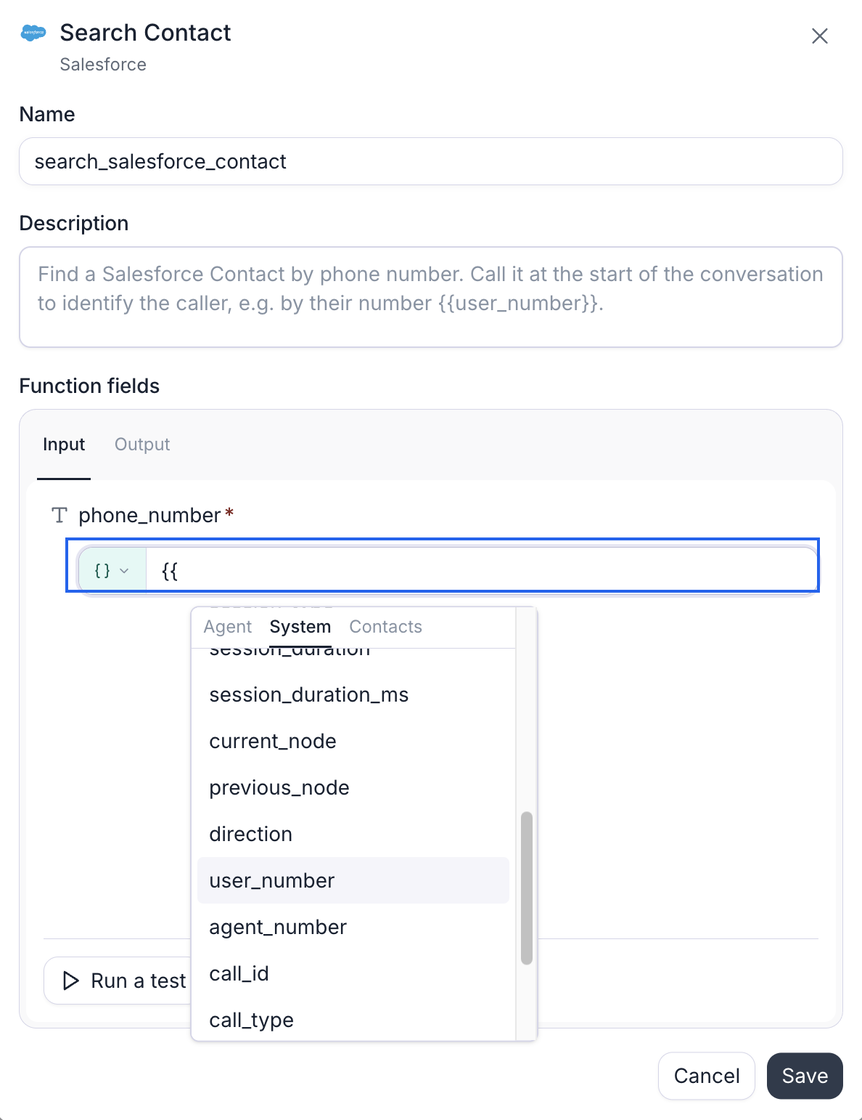

Chaining works through dynamic variables. On the function’s Output tab, give a response field a name in the Dynamic variable column; downstream functions then reference it as {{that_name}} in any input, and the agent’s prompt can use it too. Variables become available as the graph runs, so a function only ever sees output from functions that finished before it. The dashboard enforces the same rule as you type: when you pick a variable, it offers only the outputs of the functions this one waits on, not the ones running beside it or after it. Two more things to know about how the data reaches the agent:

• The result itself lands in the agent’s context, not just the variables you named. Every tool call is woven into the transcript the LLM reads, with its arguments and its response; what a workflow function changes is only where — a pre-conversation call is prepended, so the agent has it from its first turn. Responses are capped at 30,000 characters for an integration tool and 15,000 for a custom function or code tool (as of August 2026). Use Select fields on the Output tab to send only the fields that matter, rather than letting a large provider payload crowd the prompt.
• Dynamic variables are extracted from the raw response, before that field selection. Narrowing what the agent sees never breaks a variable you mapped.

If a {{variable}} in an input has no value — the function it came from didn’t run, or returned nothing for that field — the input is left out. If that input was required, the function is skipped rather than sent with a gap in it.

​

Variables a post-conversation function can use

Post-call and post-chat functions run after post-call analysis, so they can read its results on top of everything available during the session: These are available to post-conversation functions only; nothing earlier can read them, because the analysis hasn’t run yet.

​

Gate a post-conversation function on a condition

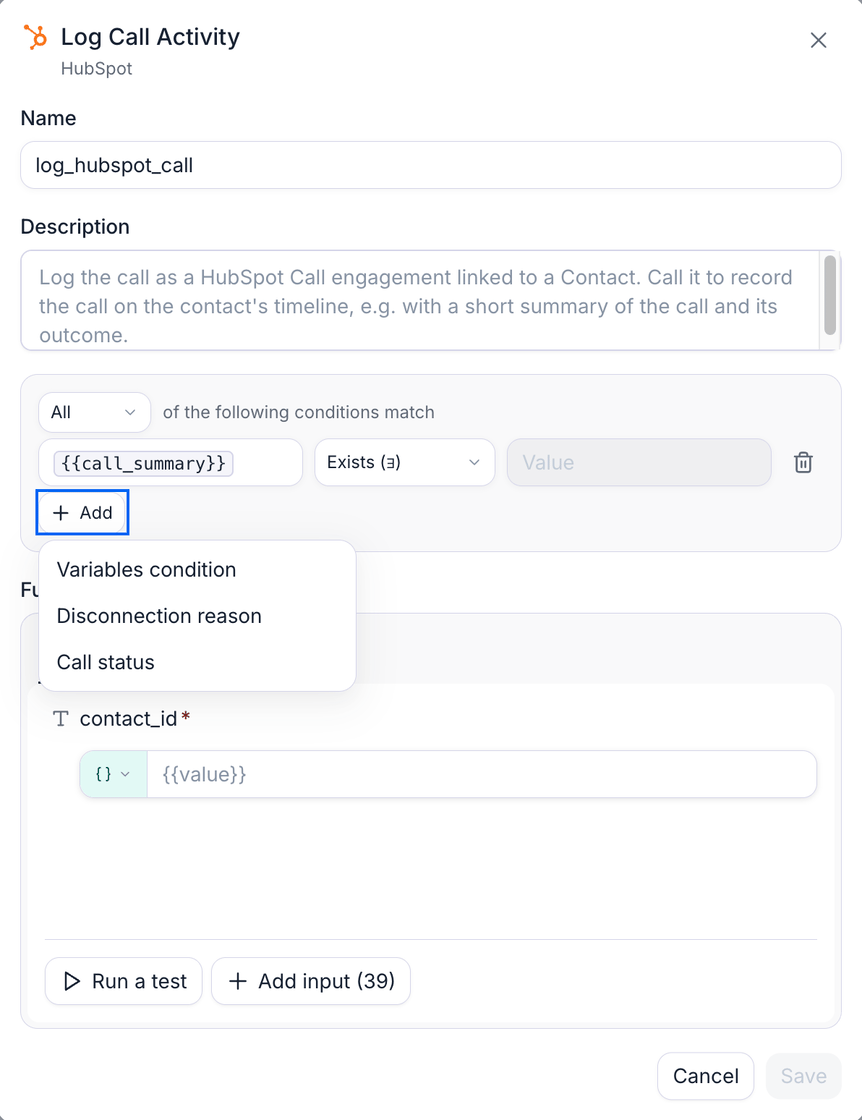

Every post-call and post-chat function can carry an only when gate, so you don’t write a task on a call that never connected. In the function’s config, set the match to All or Any, then add rows:

• Variables condition — compare a {{variable}} against a value with =, ≠, >, <, ≥, ≤, contains, not contains, exists, or not exists. Picking exists or not exists drops the value field, since there’s nothing to compare against.
• Disconnection reason — pick one or more reasons the session must have ended with.
• Call status — require a specific final status.

A function with no rows always runs. A gated-off function counts as not having run, so anything depending on it is skipped too. That’s usually what you want: gate the lookup, and the write that follows it drops with it.

​

Examples

​

Greet an identified caller and load their tickets

A support line answers with the caller’s name and their open ticket already in context. Pre-call functions:

1. find_user — Zendesk Search User, with phone_number pinned to {{user_number}}. On the Output tab, map the user’s id to zendesk_user_id and name to caller_name.
2. list_tickets — Zendesk List User Requested Tickets, added as a sequential function under find_user, with user_id set to {{zendesk_user_id}}.

The prompt then opens with Greet {{caller_name}} by name. and the agent already has the ticket list in context, so “what’s the status of my ticket?” is answered on the first turn instead of the third. The same pair works on a chat agent as pre-chat functions. Swap {{user_number}} for whichever dynamic variable your chat is started with, such as an email address passed in when the widget opens.

​

Log the session and open a follow-up task

A sales agent writes every conversation back to HubSpot, and creates a task only when there’s something to follow up on. Pre-call function:

• search_contact — HubSpot Search Contact on {{user_number}}, mapping the record ID to hubspot_contact_id.

Post-call functions:

1. log_hubspot_call — HubSpot Log Call Activity on {{hubspot_contact_id}}, with the body set to {{call_summary}}. Gated on All: {{call_summary}} exists, so a call that never got far enough to analyze writes nothing.
2. create_followup — HubSpot Create Task, added as a parallel function beside log_hubspot_call so both writes go out at once. Gated on All: {{call_status}} = ended and {{followup_needed}} = true, where followup_needed is a custom post-call analysis field. Its subject is a description the LLM fills in from the transcript.

The session is logged every time it completes; the task appears only on the conversations that earned one.

​

Confirm a booking by text

A clinic texts the caller after the call, but only when a booking actually happened. Post-call functions:

1. get_booking — Cal.com Get Booking, with the UID set to {{booking_uid}}, a variable an in-conversation Book Appointment tool mapped earlier in the call. Gated on All: {{booking_uid}} exists.
2. send_confirmation — an SMS function, sequential under get_booking, whose content the LLM writes from the transcript and the booking response.

No booking means {{booking_uid}} never gets set, the gate fails, and both functions drop, so no text goes out. On a chat agent, replace the SMS with a Custom function that posts to your own notification endpoint.

​

Timing and limits

A call waits for its pre-call graph before the conversation begins, up to a budget that depends on the call:

• Inbound and web calls wait 1 minute.
• Outbound calls wait 5 minutes, before Retell dials. The extra room is there because nothing is ringing yet, so nobody is sitting on the line while a CRM lookup runs.

Exceeding the budget doesn’t cancel anything. The remaining functions keep running in the background, and what they return still reaches the agent: each call and its response are added to the transcript the LLM reads, and the variables they map stay available to everything downstream, post-call functions included. What a late arrival misses is the initial prompt and the agent’s opening message, which are already built by the time it lands. So the budget is the deadline for anything the agent’s first words depend on, not for the data itself. Post-call functions are capped at 5 minutes total. That one is a hard stop: whatever hasn’t finished is cancelled so teardown can complete. Figures are as of August 2026.

​

When a function fails

A failure stays inside the function it happened in. A function that errors, times out, is missing a required input, or is gated off is marked unsuccessful, and:

• Everything waiting on it is skipped, and everything waiting on those. A lookup that fails takes down the write that needed its ID, rather than sending a request with a blank field.
• Independent branches carry on. A failed CRM lookup doesn’t stop the calendar check running beside it.
• The session continues. A pre-conversation failure still connects the call or opens the chat, just without those variables, so write the prompt to read correctly when a lookup came back empty. A post-conversation failure still completes teardown.

​

See what ran

Open the call in call and chat history and read the transcript. Pre-call function calls sit under a Before call divider at the top, the conversation follows Call started, and post-call ones sit under Call ended at the bottom. Each entry shows the arguments sent and the response returned, so you can tell a bad input apart from a provider error. During a live call, the same entries collapse under Before conversation in the live transcript. Chat sessions run their pre-chat and post-chat functions the same way, but the dashboard’s chat transcript doesn’t show those entries yet (as of August 2026).

​
