Run JavaScript in Retell agents with Code Tool

Code Tool lets a single- or multi-prompt agent run JavaScript in Retell’s sandbox. The LLM decides when to call the tool from its name, description, and conversation context. For example, a lending agent can call a Code Tool to calculate a repayment amount from values already stored in dynamic variables, then use the returned amount in its next response. If you use a conversation flow agent, see Code node.

When to use Code Tool

	Code Tool	Custom function
Runs	JavaScript in Retell’s sandbox	An HTTP request to your server
Trigger	The LLM decides when to call it	The LLM decides when to call it
Inputs	Dynamic variables and call or chat metadata	LLM-supplied parameters, dynamic variables, and request data
Best for	Formatting, calculations, and low-risk HTTP lookups	Authenticated integrations and production workflows
Maximum code size	20,000 characters	Not applicable

Code Tool doesn’t accept LLM-supplied parameters. The sandbox receives only the current dv and metadata objects. If the LLM must compose arguments when it calls the tool, use a custom function.

Use Code Tool only for logic that can run without secrets. Dynamic variables and metadata are stored in plaintext with the call or chat record. For authentication, secret management, internal systems, or production writes, use a custom function hosted on your backend.

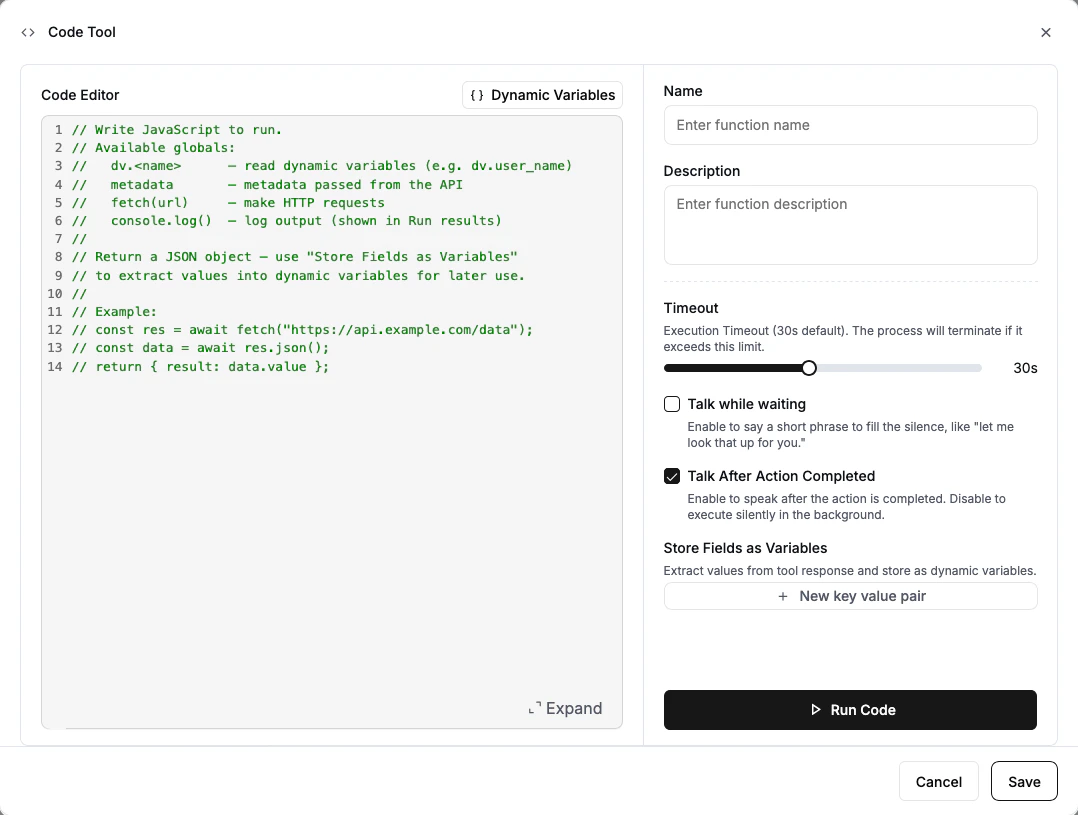

Create a Code Tool

Add a Code Tool

In the agent’s Functions section, select + Add, then select Code.

Function-type menu with Code below Extract Dynamic Variable and above Custom Function. — Code in the function-type menu.

Set the name and description

Use a unique name with 1–64 letters, numbers, underscores, or dashes. Spaces aren’t allowed. The description can contain up to 1,024 characters and should tell the LLM exactly when to call the tool.For example:

Name: calculate_daily_repayment
Description: Calculate the daily repayment amount after fin_amount, tenure_days, and interest_rate are available as dynamic variables.

Write JavaScript

Read input values from dv or metadata and return a JSON-serializable value. Retell serializes the return value to JSON, sends it to the LLM as the tool result, and extracts any response variables from it (next step).

const principal = Number(dv.fin_amount);
const days = Number(dv.tenure_days);
const annualRate = Number(dv.interest_rate) / 100;

if (![principal, days, annualRate].every(Number.isFinite) || days <= 0) {
  return { ok: false, error: "Missing or invalid repayment inputs" };
}

const interest = principal * annualRate * (days / 365);
const dailyRepayment = (principal + interest) / days;

return {
  ok: true,
  daily_repayment: dailyRepayment.toFixed(2)
};

Store fields as variables

Under Store Fields as Variables, map a dynamic-variable name to a path in the returned value. For the example above, map daily_repayment to daily_repayment.See Store response variables for nested and array paths.

Configure execution feedback

Under During Execution Feedback, turn on Talk while waiting to use a generated prompt or static sentence, or turn on Play typing sound. Talk After Action Completed is on by default so the LLM responds after the result arrives.

Update the agent prompt

Tell the LLM when the required dynamic variables are ready and when to call the tool.

After fin_amount, tenure_days, and interest_rate are available as dynamic
variables, call calculate_daily_repayment before quoting a repayment amount.

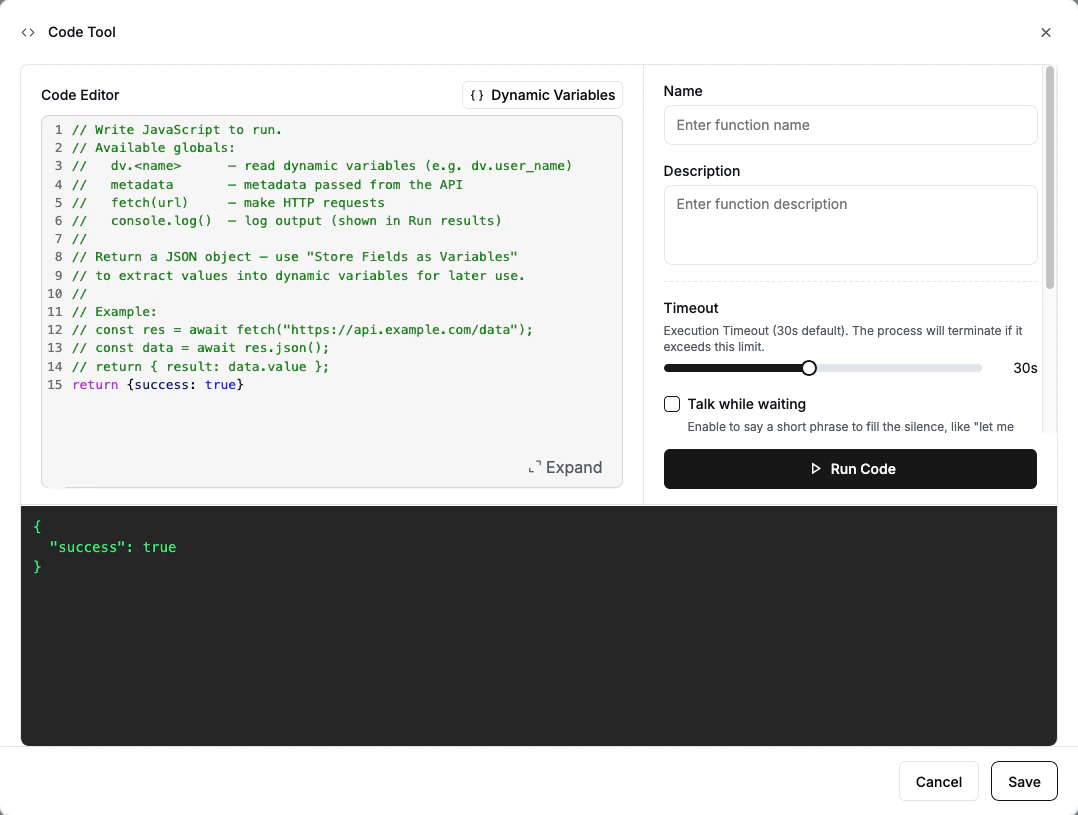

Test the code

Use Dynamic Variables in the editor to add test values, then select Run Code. The result and any console.log() output appear below the editor.Test values stay in the dashboard and don’t change the live agent. The dashboard test doesn’t populate metadata, so metadata-dependent code must handle an empty object during testing.

JavaScript environment

The code runs inside a QuickJS sandbox. Top-level await is supported.

`dv`: dynamic variables

Read dynamic variables as properties of dv. All values in dv are strings, including values stored by earlier tools.

const customerName = dv.customer_name;
const orderTotal = Number(dv.order_total);
const callerNumber = dv.user_number;

Use dv.user_number, not {{user_number}}, inside JavaScript. Runtime values such as call_id, chat_id, session_type, direction, user_number, and agent_number are available when they apply to the current session.

Dynamic variables are available through dv inside JavaScript. {{...}} template substitution isn’t available inside code.

Code Tool has no parameter schema. If the tool needs values mentioned by the caller, extract them into dynamic variables first with an Extract Dynamic Variable tool or return them as response variables from an earlier tool. Because the LLM selects tools, it can skip a separate extraction tool. Use a custom function when arguments must be composed at call time, or a conversation flow when the extraction and calculation must run in a fixed sequence.

`metadata`: call or chat metadata

Read metadata passed when you create the phone call or chat.

const customerId = metadata.customer_id;
const priority = metadata.priority_level;

Metadata values can use JSON types. Unlike values in dv, they aren’t limited to strings.

`fetch(url, options)`: HTTP requests

fetch() supports HTTP and HTTPS URLs, request methods, string-valued headers, and request bodies. The returned response supports status, ok, statusText, url, headers.get(), text(), and json().

const zip = encodeURIComponent(dv.zip_code);
const response = await fetch(`https://api.zippopotam.us/us/${zip}`);

if (!response.ok) {
  return { found: false, status: response.status };
}

const location = await response.json();
return {
  found: true,
  city: location.places[0]["place name"],
  state: location.places[0]["state abbreviation"]
};

The sandbox blocks non-HTTP protocols and selected local, private, and platform addresses. It doesn’t provide the complete browser Fetch API.

`console.log()`: test output

Use console.log() while testing. Logs appear in Run Code results. They aren’t added to the live tool result or shown as Code Tool logs in call logs.

console.log("Customer:", dv.customer_name);

Runtime limits

Limit	Value
Code size	20,000 characters
Timeout	5–60 seconds; 30 seconds by default
Result sent to the agent	15,000 characters by default
Automatic retries	None

The sandbox provides common JavaScript built-ins such as Array, Date, JSON, Map, Math, Promise, RegExp, and Set. Node.js modules, browser DOM APIs, require, import, and Intl aren’t available.

Store response variables

Response variables copy fields from the full return value into dynamic variables. For this return value:

return {
  status: "confirmed",
  order: {
    id: "ord_123",
    items: [{ name: "Replacement filter" }]
  }
};

configure these mappings:

Dynamic-variable name	Path to value	Stored value
`order_status`	`status`	`confirmed`
`order_id`	`order.id`	`ord_123`
`first_item_name`	`order.items[0].name`	`Replacement filter`

Stored values are strings. Objects and arrays are stored as JSON strings. If a path doesn’t exist or resolves to null, Retell skips that variable without failing the execution. Response-variable extraction uses the full return value, even when the result sent to the agent is capped at 15,000 characters.

Configuration

Setting	Default	Behavior
Timeout	30 seconds	Stops execution after 5–60 seconds.
Talk while waiting	Off	Speaks one generated prompt or static sentence when the tool starts.
Play typing sound	Off	Plays a typing sound while the tool runs.
Talk After Action Completed	On	Calls the LLM after the result arrives so the agent can respond. Turn it off to finish silently.

If several tools run in sequence, enable Talk while waiting on only the tool that should speak. Otherwise, the caller can hear multiple waiting messages.

Use Code Tool safely

Don’t put API keys, credentials, or sensitive tokens in code, dv, or metadata.
Use fetch() for low-risk HTTP reads. Put authenticated requests and state-changing operations behind a custom function on your backend.
Don’t make critical routing or financial decisions depend on an unvalidated return value. Handle missing and invalid dv values explicitly.

FAQ

Can the LLM pass arguments directly to Code Tool?

No. Code Tool doesn’t expose a parameter schema and receives only dv and metadata. Use a custom function when the LLM must fill arguments at call time. If you chain an Extract Dynamic Variable tool before Code Tool, the LLM can still skip that first tool; use a conversation flow when the sequence must be deterministic.

Why does the agent say the waiting message twice?

Each tool with Talk while waiting enabled can speak its own message. If an extraction tool and Code Tool run in sequence, enable the setting on only one of them or give them distinct messages.

Can I use npm packages or browser APIs?

No. The sandbox doesn’t provide require, import, Node.js modules, browser DOM APIs, or Intl. Use the available JavaScript built-ins and fetch().

What happens if the code times out or throws an error?

Retell marks the execution as failed, sends the error to the LLM, doesn’t extract response variables, and doesn’t retry automatically. Use try/catch for expected errors and return a structured fallback such as { "ok": false, "error": "lookup failed" }.

Can I use async/await?

Yes. Top-level await is supported, including for fetch() calls.

Can I write dynamic variables from inside the code?

Not by assigning to dv. The sandbox receives a copy of dv, so changes you make to it inside the code don’t persist. To write a value back for later turns, return it and map it under Store Fields as Variables.

Is there a limit on the result size?

Retell sends up to 15,000 characters to the agent by default. Response-variable extraction uses the full return value before that result is capped.
